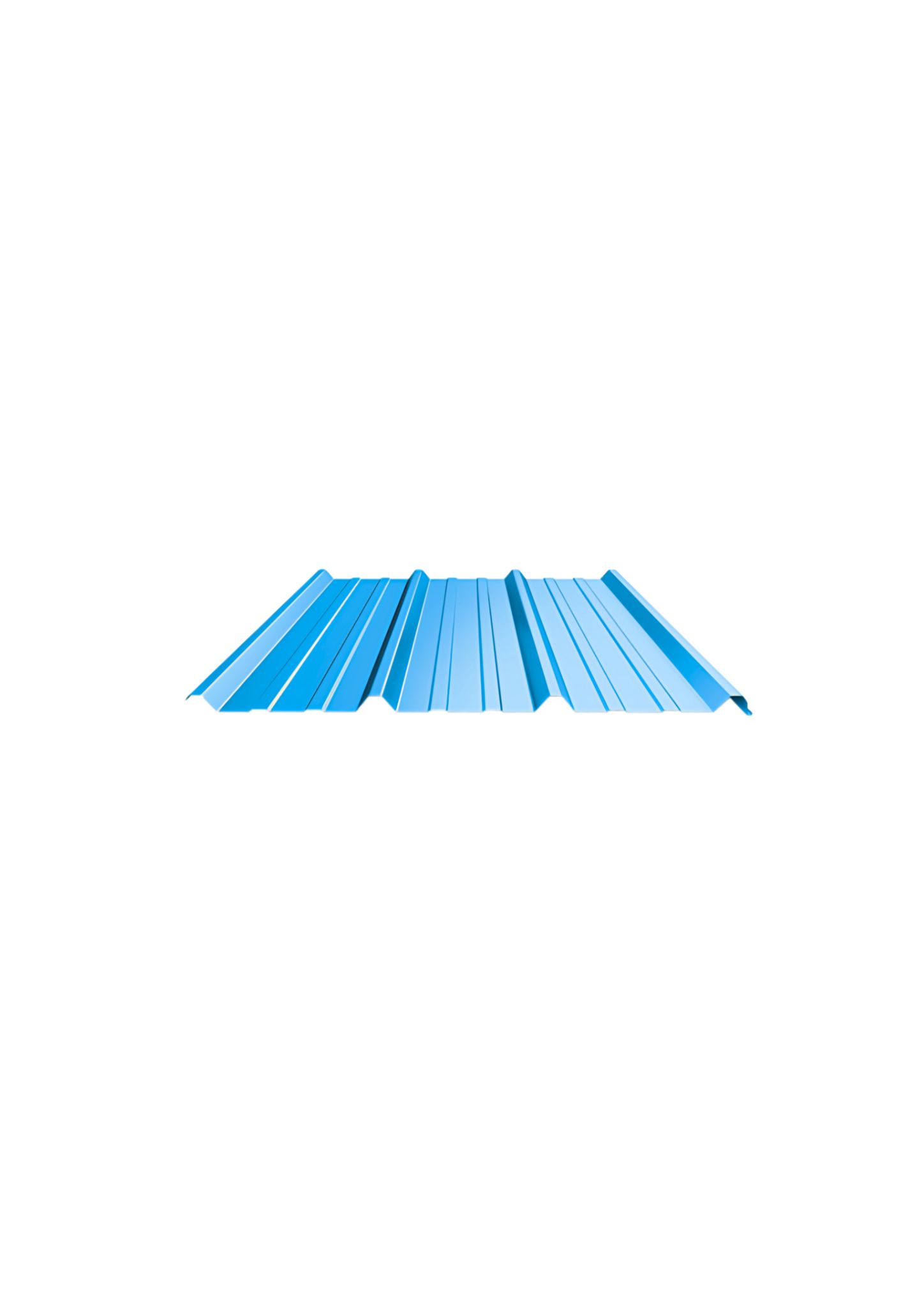

Trapeza 39t
Colours White And Blue
₹200.00₹180.00
✅ Trapeza 39T Profile – Technical Disbrication
Profile Name: Trapeza 39T
Application: Roofing & Cladding
Profile Type: Trapezoidal
Coating: AZ150 / AZ200 with SDP (Super Durable Polyester) / SMP / RMP (optional as per order)
🔩 Technical Specifications:
Parameter | Specification |
|---|---|
Pitch (Rib Distance) | 195 mm |
Crest Height | 39 mm |
Effective Cover Width | ~1000 mm (1 meter) |
Total Width | ~1080 mm |
Sheet Thickness | 0.40 mm to 0.80 mm (as per requirement) |
Standard Length | 8 ft to 24 ft (custom available on request) |
Material Type | Galvalume Steel / Pre-painted Galvalume Steel |
Coating Type | AZ150 / AZ200 (Al-Zn alloy coating) |
Paint System | SDP / SMP / RMP (based on order) |
Span Capacity | Upto 5.5 ft (purlin to purlin, depending on load) |
🌟 Key Features:
Leak-proof performance with anti-capillary groove
High rib strength ensures excellent load-bearing
Better water drainage due to deeper valleys
Lightweight yet strong roofing solution
Weather & corrosion resistant with AZ coating
Interlocking design for secure fitment
Available in multiple colors with UV-resistant paint
📦 Optional Accessories:
Ridge Cap
Gutter
Flashings
Screws with EPDM washer
Turbo ventilators
Polycarbonate sheets for skylight
